SUNDOWN

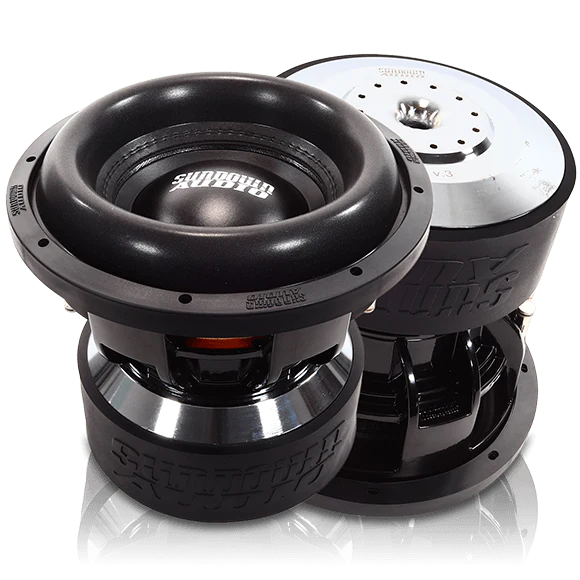

X-SERIES 10" 2000W X-10 SUBWOOFER
X-SERIES 10" 2000W X-10 SUBWOOFER
SKU:
Regular price
$629.99 USD
Regular price
$629.99 USD
Sale price
$629.99 USD
Unit price
/
per
Couldn't load pickup availability
SPECIFICATIONS
| T/S SPECS | X V.3 10″ D1 | X V.3 10″ D2 |
|---|---|---|
| RE (Ohms) | 1.4 | 3.2 |
| FS (Hz) | 39.104 | 40.208 |
| VAS (L) | 11.623 | 9.352 |
| Qes | 0.441 | 0.528 |
| Qms | 2.567 | 2.842 |
| Qts | 0.376 | 0.445 |
| Le (mH) | ||
| BL (NA) | 14.155 | 21.509 |
| Mms (Grams) | 256.970 | 302.089 |
| Cms (uM/N) | 64.465 | 51.867 |
| Sens (dB @ 1w/1m) | 83.8dB | 82.5dB |
ENCLOSURE SPECIFICATIONS
| X v.3 8 | X v.3 10 | X v.3 12 | X v.3 15 | X v.3 18 | |
| Sealed Enclosure | 0.3-.04cuft | N/A | N/A | N/A | N/A |
| Ported Enclosure | 0.75-1.0 cu ft | 1.5 cu ft | 2.5 cu ft | 4.25 cu ft | 7.00 cu ft |
| Recommended Tuning | 32hz | 32hz | 32hz | 32hz | 32hz |
| Recommended Port Area | 12-16 sq in | 24 sq in | 40 sq in | 68 sq in | 112 sq in |
| Displacement | 0.13 cu ft | 0.21 cu ft | 0.2 cu ft | 0.22 cu ft | 0.23 cu ft |
| Depth | 6.8" | 9.4" | 10.4" | 11.6" | 13.6" |
| Outside Diam. | 8.70" | 11.65" | 12.68" | 15.51" | 18.42" |
| Cutout | 7.36" | 10.01" | 11.09" | 13.83" | 16.69" |
| Physical Dimensions | Download | Download | Download | Download | Download |
