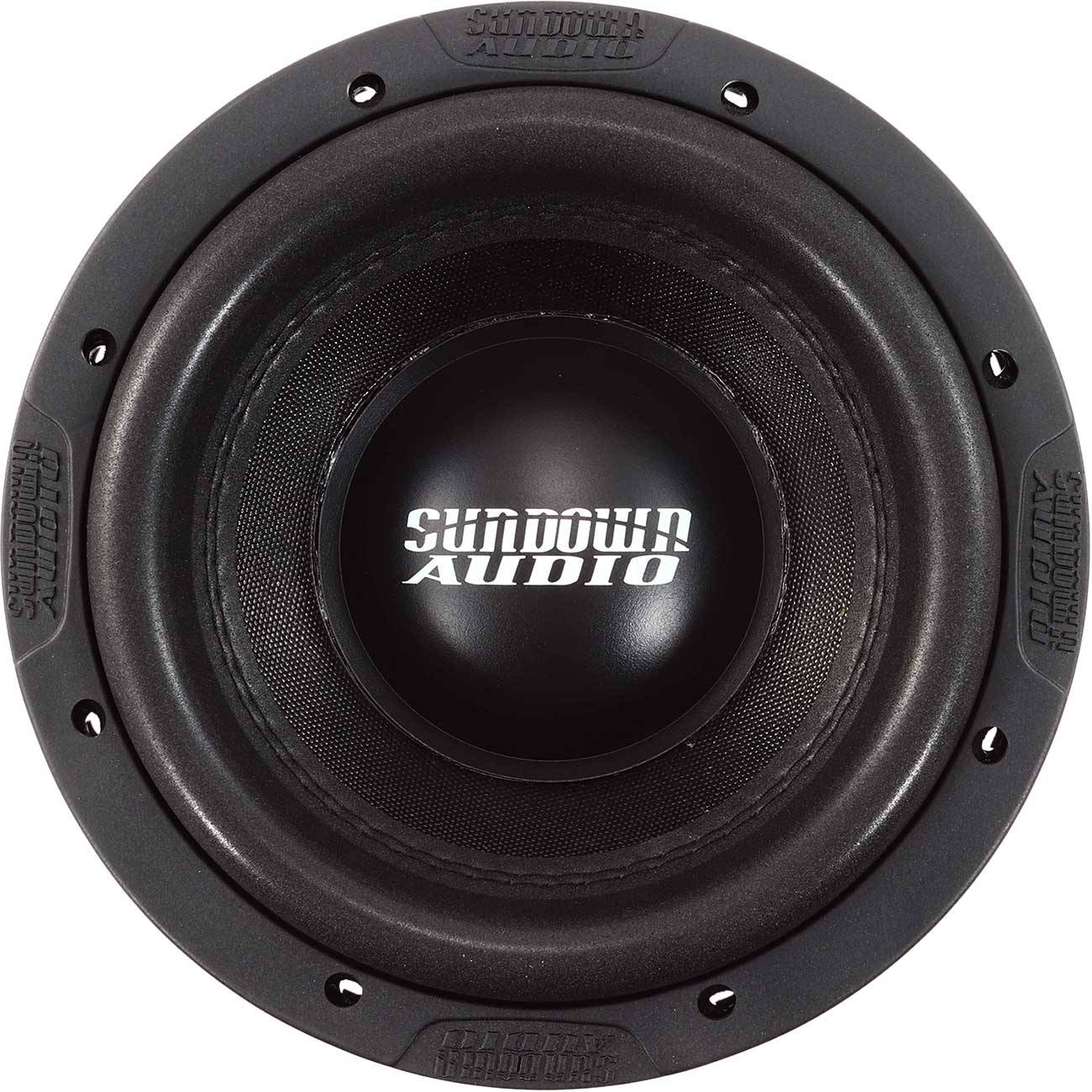

U8V2D4 - Sundown Audio 8″ Woofer 600W RMS Dual 4 Ohm Voice Coils

Sundown Audio 8? Woofer, 600W RMS, Dual 4 Ohm Voice Coils

600 Watts RMS
Dual 4 Ohm Voice Coils

Xmax = 18mm one-way by 70% BL
600 Watts RMS Power
Vented magnetic gap featuring 12 chamfered gap vents
Vented pole-piece with chamfered edges
High velocity under-spider frame vents
Black Aluminum 2.25” voice coil former for superior heat dissipation
High Temperature copper voice coil wire
Large Magnet ID aluminum faraday ring
Spring Loaded Terminals
Stitched-On “XL” Tinsel Leads to prevent fatigue and failure
High strength & patented cast aluminum frame
Optimized for small, ported enclosures
Bolt-Through Motor Design for enhanced longevity

RE (Ohms): 6.34
FS (Hz): 41.288
VAS (L): 6.970
Qes: 0.519
Qms: 2.542
Qts: 0.431
BL (NA): 20.00 21.45
Mms (Grams): 145.239
Cms (mm/N): 102.308
Sens (dB @ 1w/1m): 81.6db

Mount Depth: 6.25&quote;

Sold Individually
