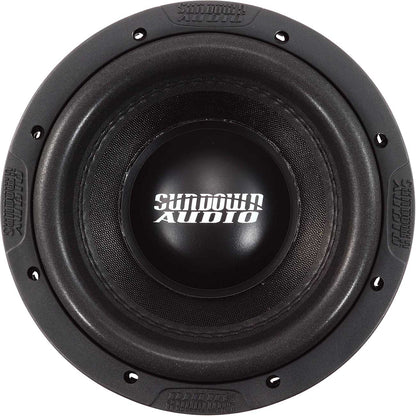

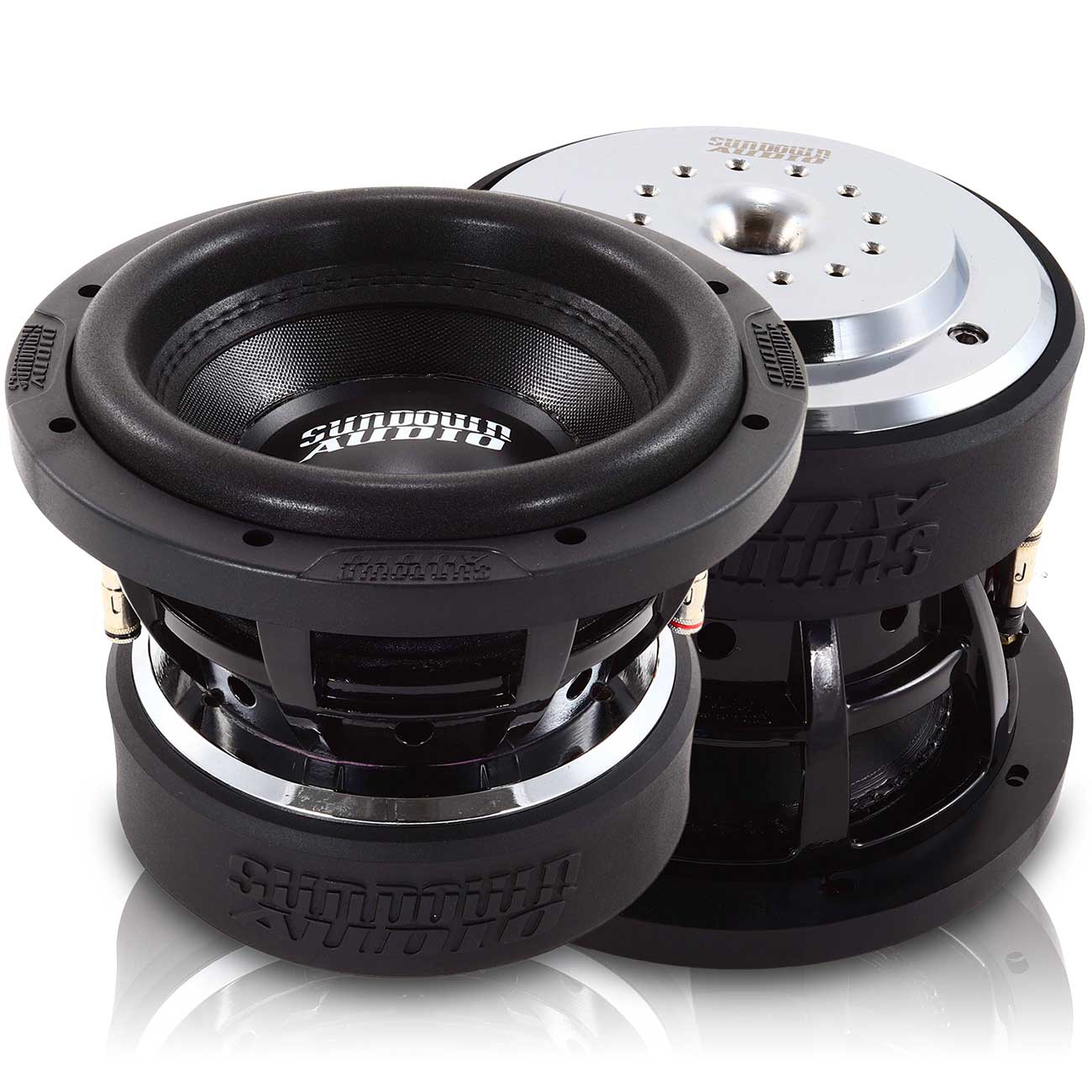

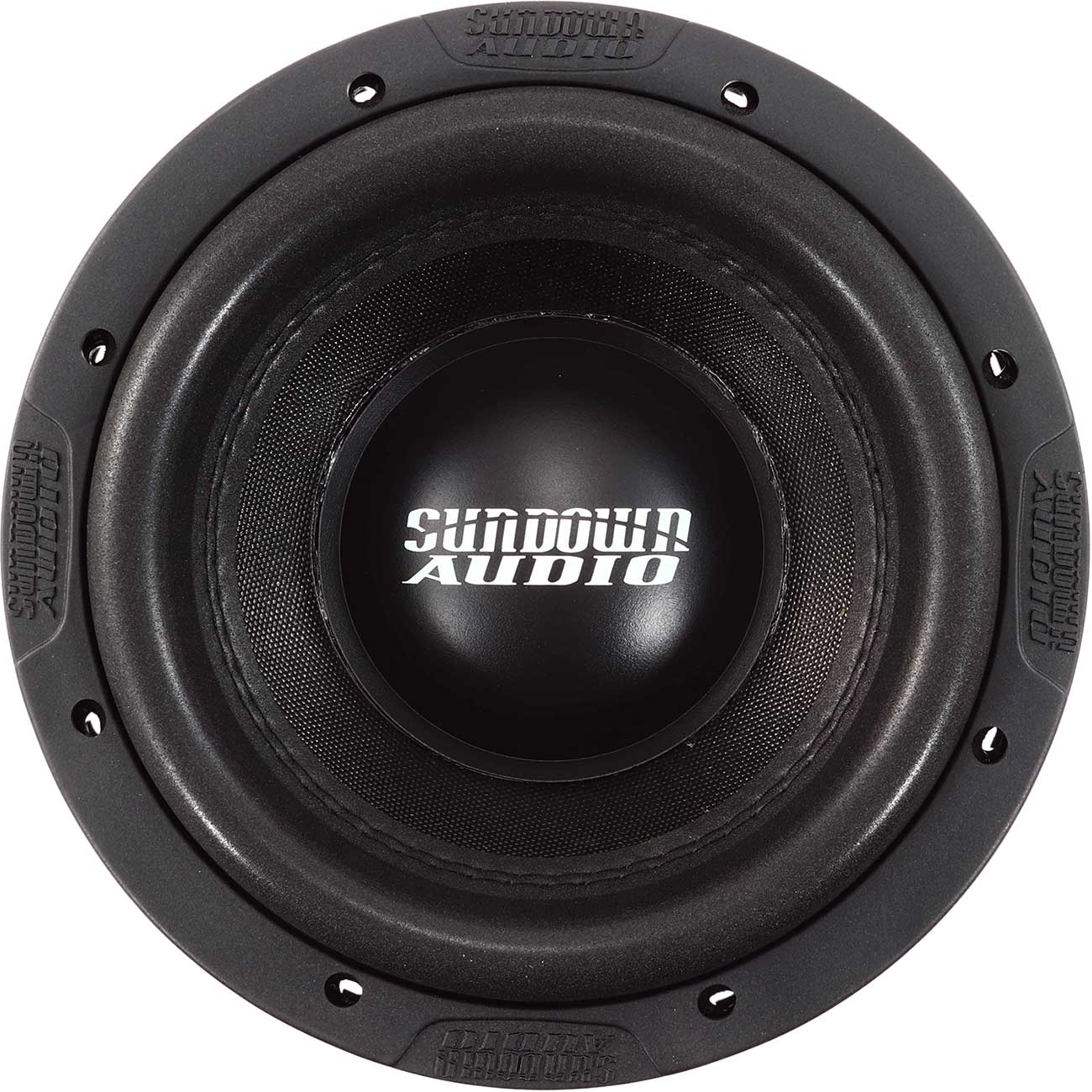

U8V2D2 - Sundown Audio 8″ Woofer 600 RMS Dual 2 Ohm Voice Coil

Sundown Audio 8? Woofer, 600W RMS, Dual 2 Ohm Voice Coils

600 Watts RMS
Dual 2 Ohm Voice Coils

Xmax = 18mm one-way by 70% BL
600 Watts RMS Power
Vented magnetic gap featuring 12 chamfered gap vents
Vented pole-piece with chamfered edges
High velocity under-spider frame vents
Black Aluminum 2.25” voice coil former for superior heat dissipation
High Temperature copper voice coil wire
Large Magnet ID aluminum faraday ring
Spring Loaded Terminals
Stitched-On “XL” Tinsel Leads to prevent fatigue and failure
High strength & patented cast aluminum frame
Optimized for small, ported enclosures
Bolt-Through Motor Design for enhanced longevity

RE (Ohms): 3.8
FS (Hz): 39.387
VAS (L): 6.345
Qes: 0.412
Qms: 2.474
Qts: 0.353
BL (NA): 20.00
Mms (Grams): 175.340
Cms (mm/N): 93.125
Sens (dB @ 1w/1m): 81.6db

Mount Depth: 6.25&quote;

Sold Individually
