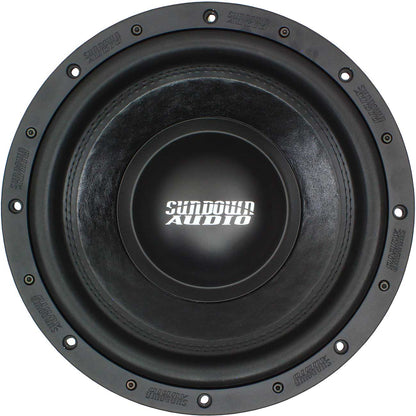

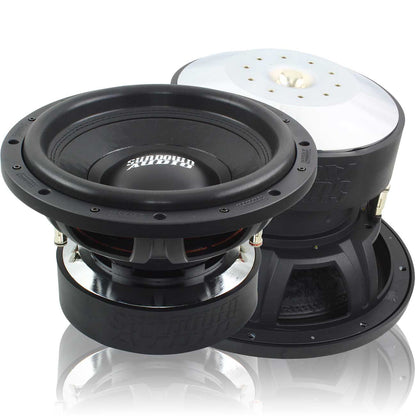

U12V2D4 - Sundown Audio 12″ Woofer 1750W RMS Dual 4 Ohm Voice Coils
U12V2D4 - Sundown Audio 12″ Woofer 1750W RMS Dual 4 Ohm Voice Coils
SKU:U12V2D4
Sundown Audio 12? Woofer, 1500W RMS, Dual 4 Ohm Voice Coils
1500 Watts RMS
Dual 4 Ohm Voice Coils
Black Aluminum 3” 4-layer voice coil former for superior heat dissipation
High Temperature Round-Wire CCAW voice coil with high-temp black adhesive
Double stitched surround
Heavy duty cast basket
Spring loaded terminals accept up to 8 gauge
Stitched-on double-XL tinsel leads
Rear vented pole piece
Rear drilled gap-venting
Innovative high-velocity cast aluminum vented frame spacer ring
Magnet ID shorting ring
Top-Plate Cooling Channels
Cast Aluminum surround bolt-on rings
Optimized for small ported or bandpass enclosures
RE (Ohms): 6.1
FS (Hz): 40.0
VAS (L): 12.3
Qes: 0.38
Qms: 2.93
Qts: 0.34
Le (mH): 3.67
BL (NA): 33.7
Mms (Grams): 284.5
Cms (uM/N): 0.06
Sens (dB @ 1w/1m): 85.0db
Mount Depth: 7.75"e;
Sold Individually
