Pioneer

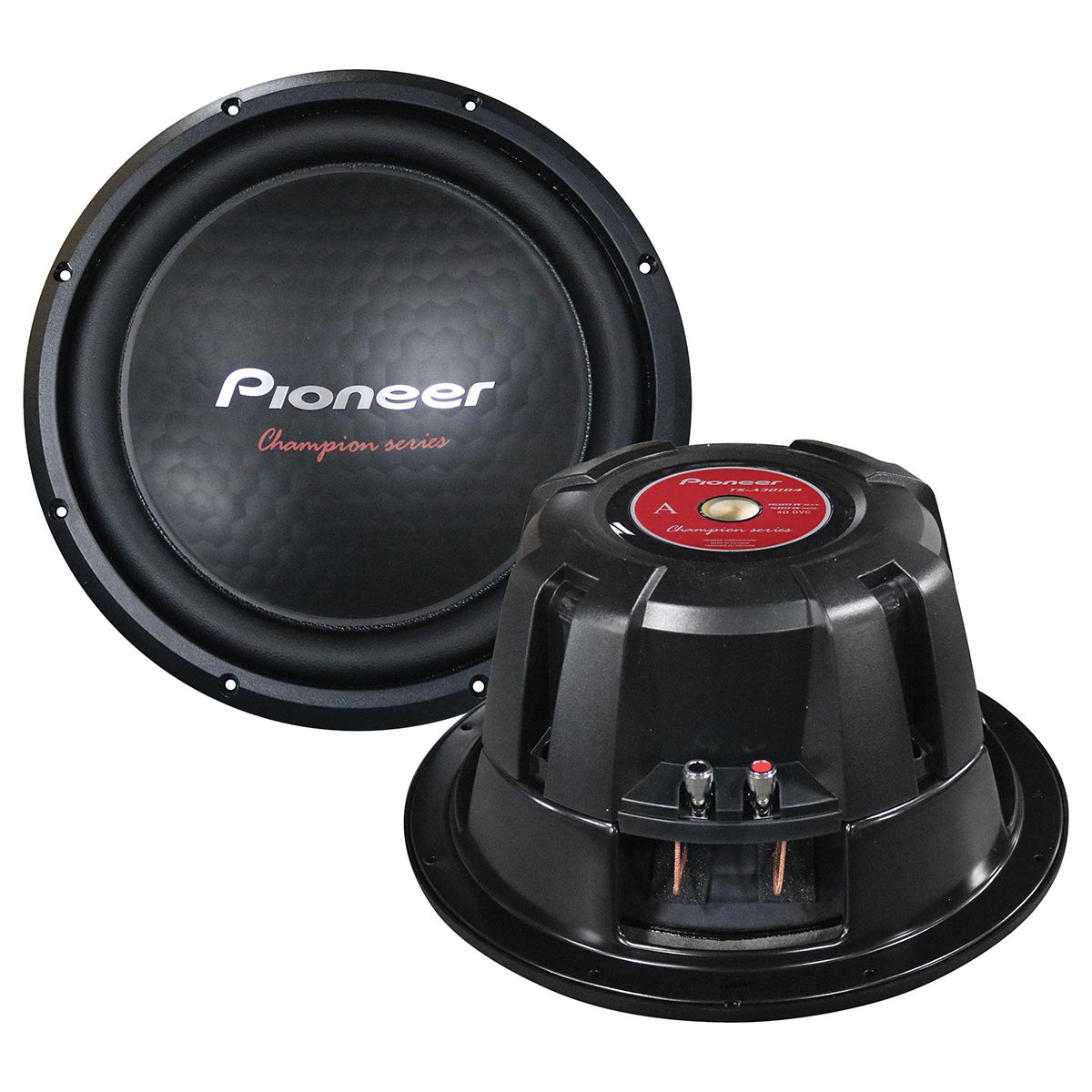

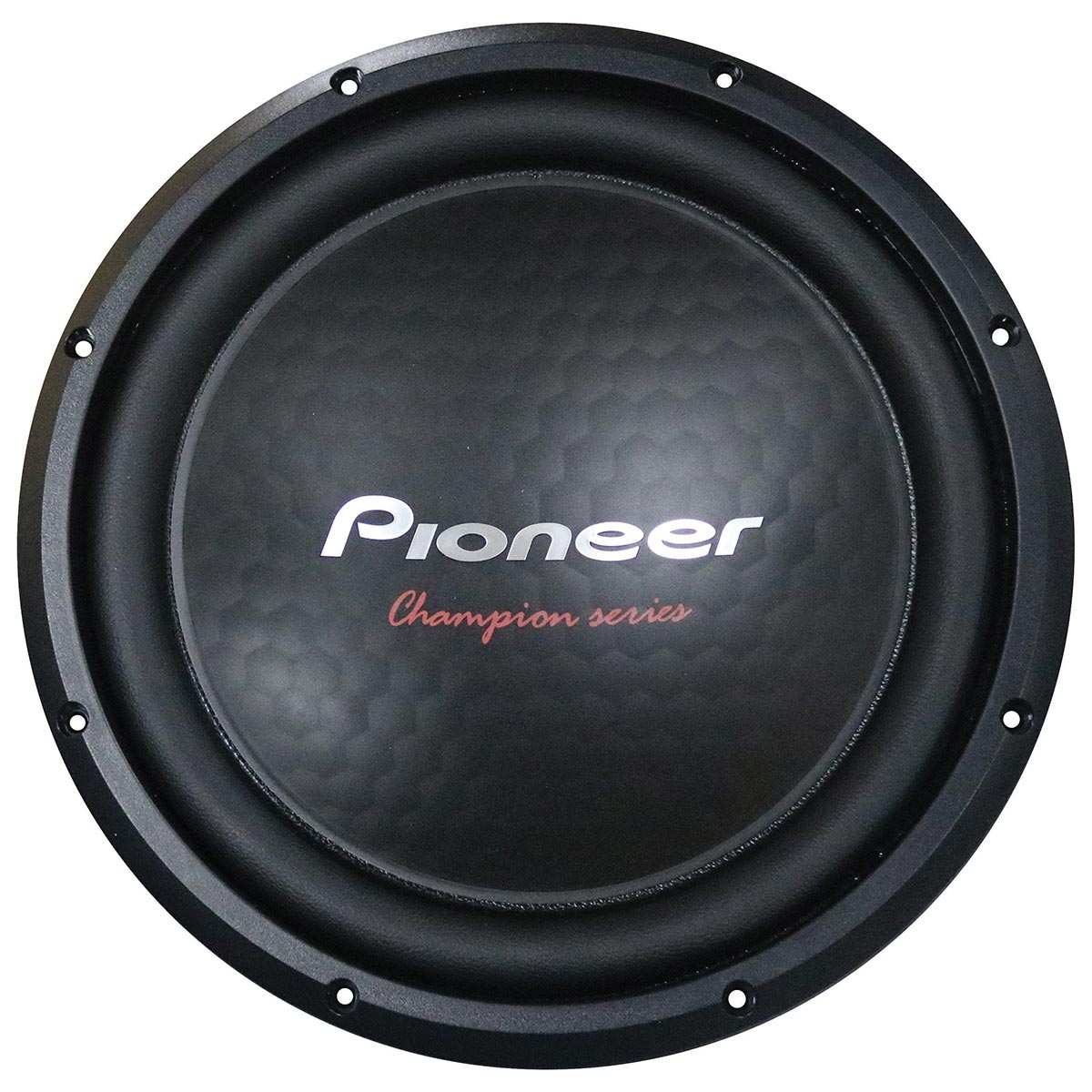

TSA301D4 - Pioneer 12″ Woofer 500W RMS/1600W Max Dual 4 Ohm Voice Coils

TSA301D4 - Pioneer 12″ Woofer 500W RMS/1600W Max Dual 4 Ohm Voice Coils

SKU:TSA301D4

Regular price $196.00 USD
Regular price Sale price $196.00 USD
Sale Sold out

Pioneer 12? Woofer, 500W RMS/1600W Max, Dual 4 Ohm Voice Coils (Sold Each)

Champion Series
Maximum Peak Power Handling: 1600 Watts
Continuous Power Handling (RMS): 500 Watts
Sensitivity (1W/1m) 92 dB
Frequency Range: 20 Hz to 1.6 kHz
Dual 4 Ohm voice coils
12? Honeycomb IMPP™ Composite Cone Structure
Dual layer fiber reinforced elastic polymer surround
90 oz Ferrite Magnet
Basket Material: Reinforced Stamped Steel
Mounting Depth: 6.125?

Cut Out dimensions: 11.125&quote;
Equivalent Compliance (VAS): 37.7
Free Air Resonance (Fs): 38
Linear Excursion (Xmax): 11.3
Port Diameter: 3&quote;
Port Length: 6.5&quote;
Recommended Ported Box volume: 1.5 Cu Ft / 42.5 Liters
Recommended Sealed Enclosure Volume: 1.25 Cu Ft / 35.4 Liters
Total Speaker &quote;Q&quote; (Qts): 0.73
