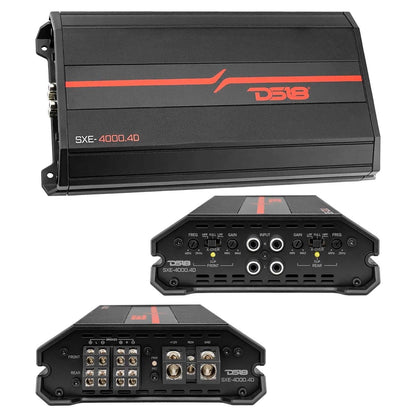

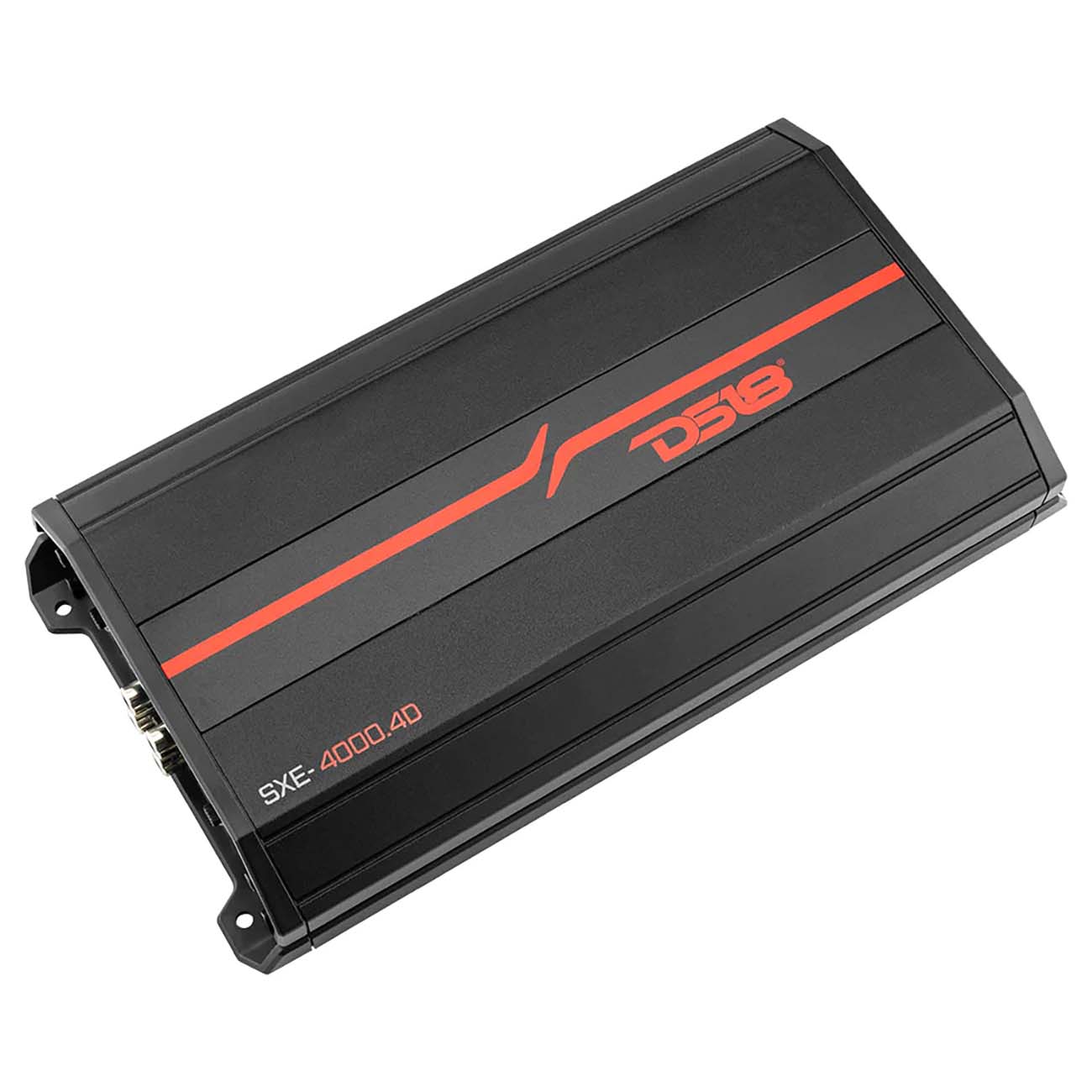

SXE40004DBK - DS18 4 Channel Amplifier 1720W RMS/4000W MAX - Black
SXE40004DBK - DS18 4 Channel Amplifier 1720W RMS/4000W MAX - Black
SKU:SXE40004DBK
DS18 4 Channel Amplifier, 1720W RMS/4000W MAX - Black
4 x 430 Watts RMS @ 2 Ohms
4 x 275 Watts RMS @ 4 Ohms
2 x 750 Watts RMS @ 4 Ohms (Bridged)
(W x H x L) 5.5? x 1.8? x 10.6?
Fuse Size: External (Not Included)
2 Ohm Stable (Stereo)
4 Ohm (Bridged)
Class D
Black Brushed Aluminum Finish
Frequency Response: 10 Hz - 20 kHz
Signal to Noise Ratio: 90dB
Efficiency @ 4 ohms: 86%
Damping Factor: 140
Input Impedance: 20kO
Channel Separation: 45dB
Total Harmonic Distortion (THD): 0.05%
Low Level Input Range: 200mV-5V
Selectable X-Over: HPF/FULL/LPF (12dB/Oct.)
X-Over Filter Range: 40 Hz - 2 KHz
Power/Ground: 4 Gauge
Led Indicator: Power/Protect/Clip
Thermal, Over-Load, DC Output, Short Circuit & Voltage Protection
Clipping Protection
