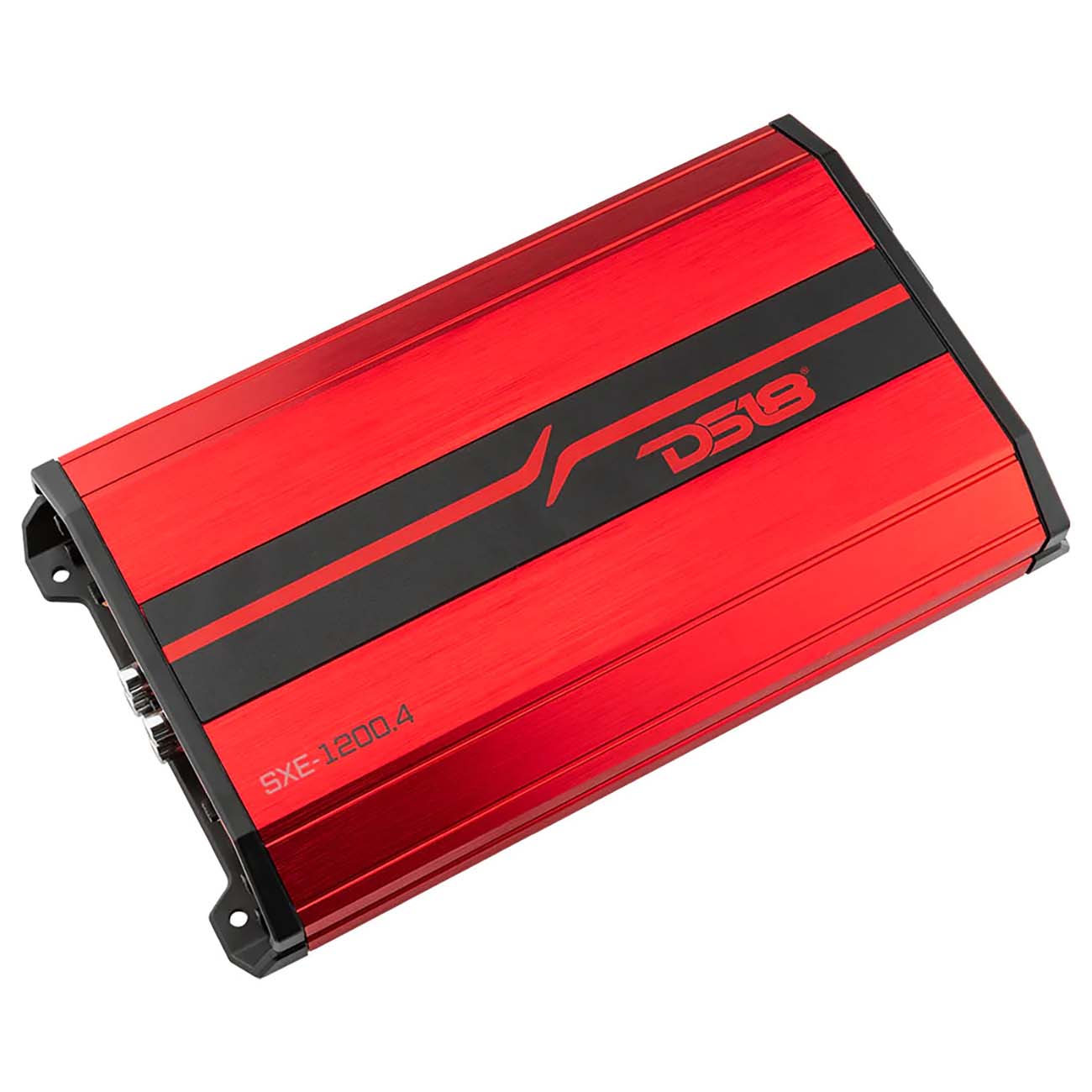

SXE12004RD - DS18 4 Channel Amplifier 400W RMS/1200W MAX - Red

DS18 4 Channel Amplifier, 400W RMS/1200W MAX - Red

4 x 100 Watts RMS @ 2 Ohms
4 x 60 Watts RMS @ 4 Ohms
2 x 200 Watts RMS @ 4 Ohms (Bridged)
(W x H x L) 5.5? x 1.8? x 9.8?

Fuses: 2 x 25A (50A)
2 Ohm Stable (Stereo)
4 Ohm (Bridged)
Class A/B
Fan Cooled

Red Brushed Aluminum Finish
Frequency Response: 10 Hz - 20 kHz
Signal to Noise Ratio: 90dB
Efficiency @ 4 ohms: 64%
Damping Factor: 170
Input Impedance: 20kO
Channel Separation: 45dB
Total Harmonic Distortion (THD): 0.05%
Low Level Input Range: 200mV-5V
Selectable X-Over: HPF/FULL/LPF (12dB/Oct.)
X-Over Filter Range: 40Hz-2KHz
Power/Ground: 4 Gauge
Led Indicator: Power/Protect/Clip
Over-Load, DC Output, Short Circuit & Voltage Protection
Clipping Protection
