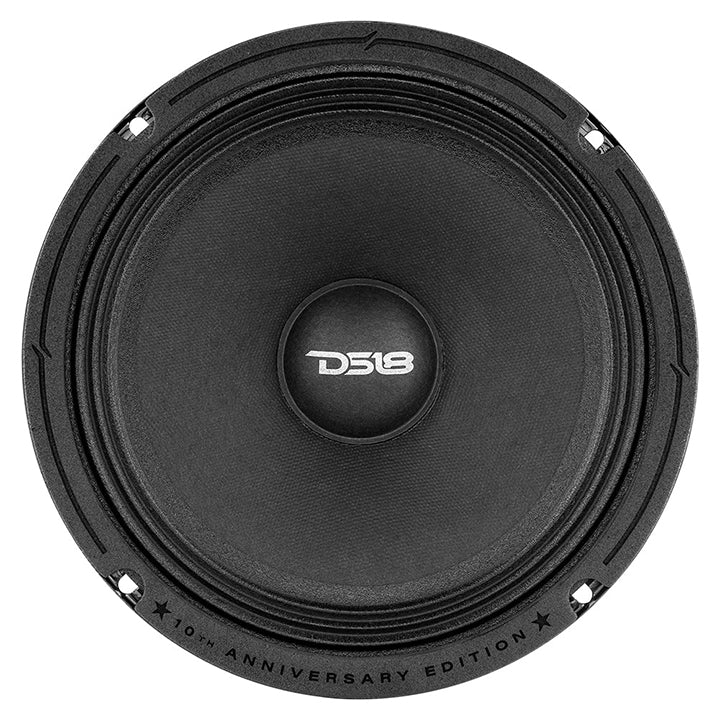

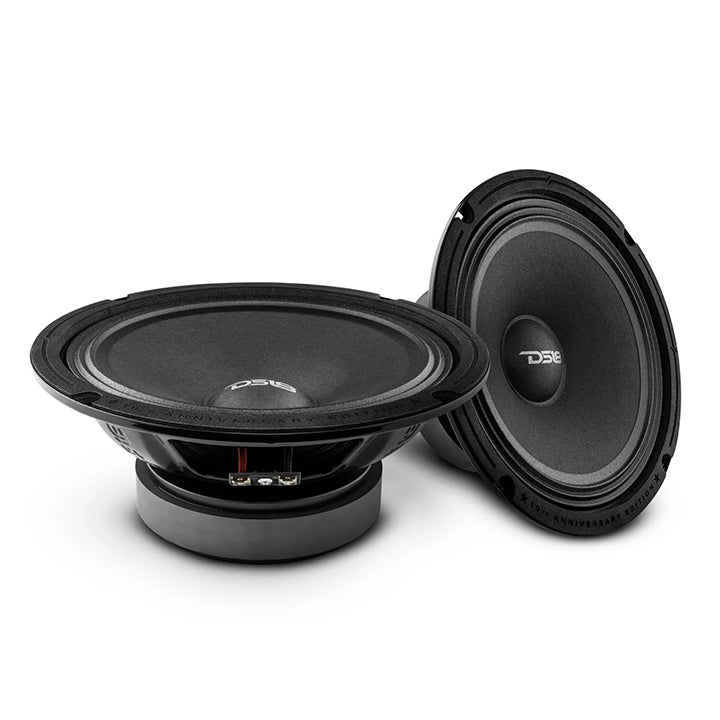

PRO84XA - DS18 8" Midrange Loudspeaker 275W RMS / 550W Max 4 Ohms 10 Year Special Edition
PRO84XA - DS18 8" Midrange Loudspeaker 275W RMS / 550W Max 4 Ohms 10 Year Special Edition
SKU:PRO84XA
Regular price
$69.95 USD
Regular price
Sale price
$69.95 USD
Unit price
/
per
Couldn't load pickup availability
DS18 8"e; Midrange Loudspeaker 275W RMS / 550W Max, 4 Ohms, 10 Year Special Edition
| SPECIFICATIONS | |
| Nominal Diameter | 8"e; / 203mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 275W |
| MAX Power Handling | 550W |
| Sensitivity (1w/1m) | 97.8dB |
| Frequency Response | 60Hz-8KHz |
| Recommended HI Pass Crossover | 80Hz |
| Sold As Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 1.5"e; / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Gloss Black |
| Magnet Material | Ferrite |
| Magnet Weight | 33oz |
| MEASUREMENT | |
| Overall Diameter | 8.25"e; / 209.8mm |
| Overall Depth | 3.45"e; / 88mm |
| Front Mount Baffle Cutout | 7.25"e; / 184mm |
| Mounting Depth | 3.2"e; / 82mm |
| Motor Diameter | 4.7"e; / 120mm |
