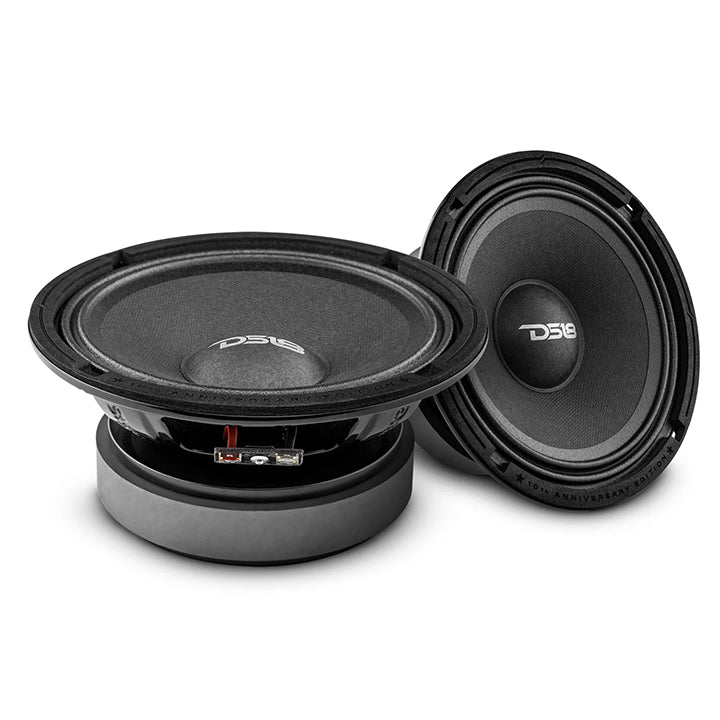

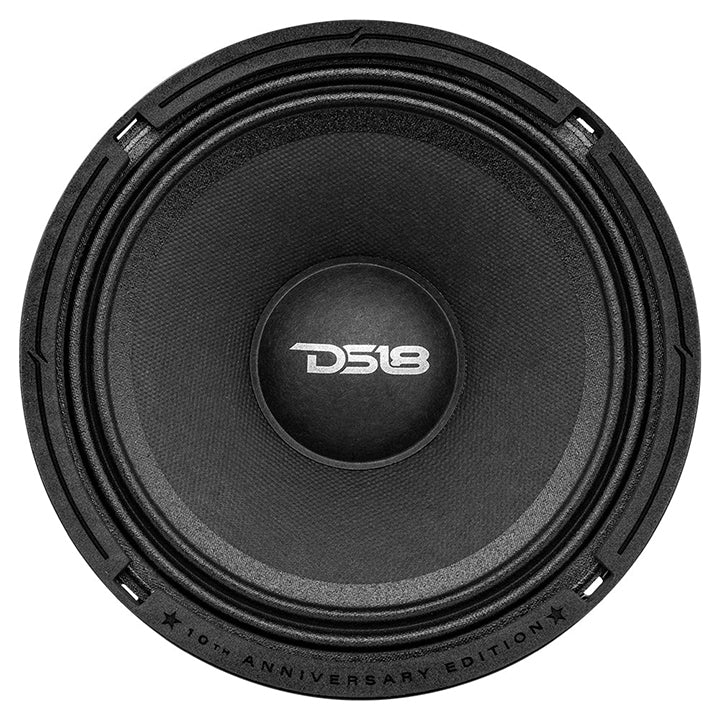

PRO64XA - DS18 6.5" Midrange Loudspeaker 250W RMS / 500W Max 4 Ohms 10 Year Special Edition
PRO64XA - DS18 6.5" Midrange Loudspeaker 250W RMS / 500W Max 4 Ohms 10 Year Special Edition
SKU:PRO64XA
Regular price
$59.95 USD
Regular price
Sale price
$59.95 USD
Unit price
/
per
Couldn't load pickup availability
DS18 6.5"e; Midrange Loudspeaker, 250W RMS / 500W Max, 4 Ohms, 10 Year Special Edition
| SPECIFICATIONS | |
| Nominal Diameter | 6.5"e; / 165mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 80Hz-6.3KHz |
| Recommended HI Pass Crossover | 100Hz |
| Sold As Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 1.5"e; / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Gloss Black |
| Magnet Material | Ferrite |
| Magnet Weight | 33oz |
| MEASUREMENT | |
| Overall Diameter | 6.5"e; / 165.5mm |
| Overall Depth | 3"e; / 77.6mm |
| Front Mount Baffle Cutout | 5.6"e; / 144mm |
| Mounting Depth | 2.75"e; / 70mm |
| Motor Diameter | 4.7"e; / 120mm |
