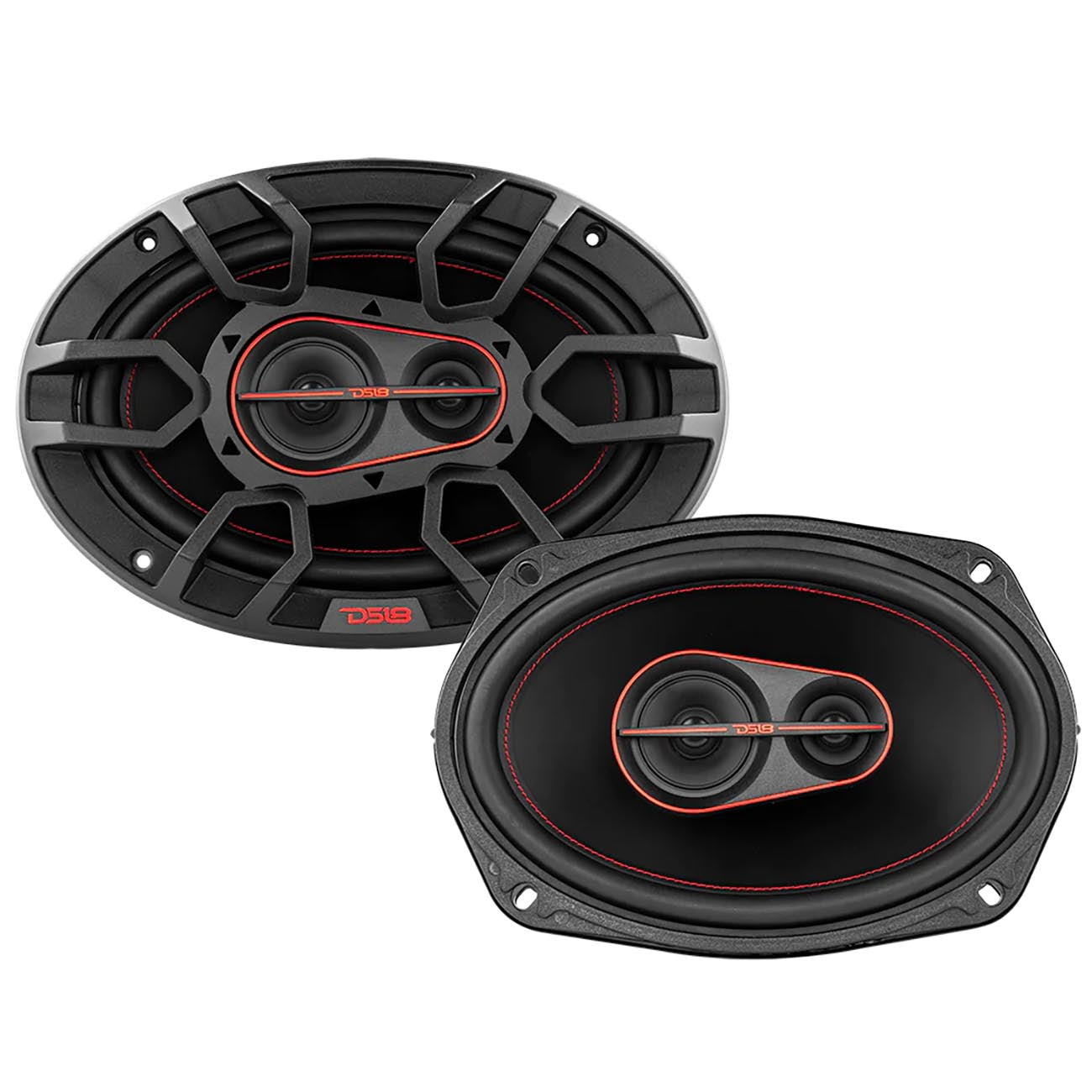

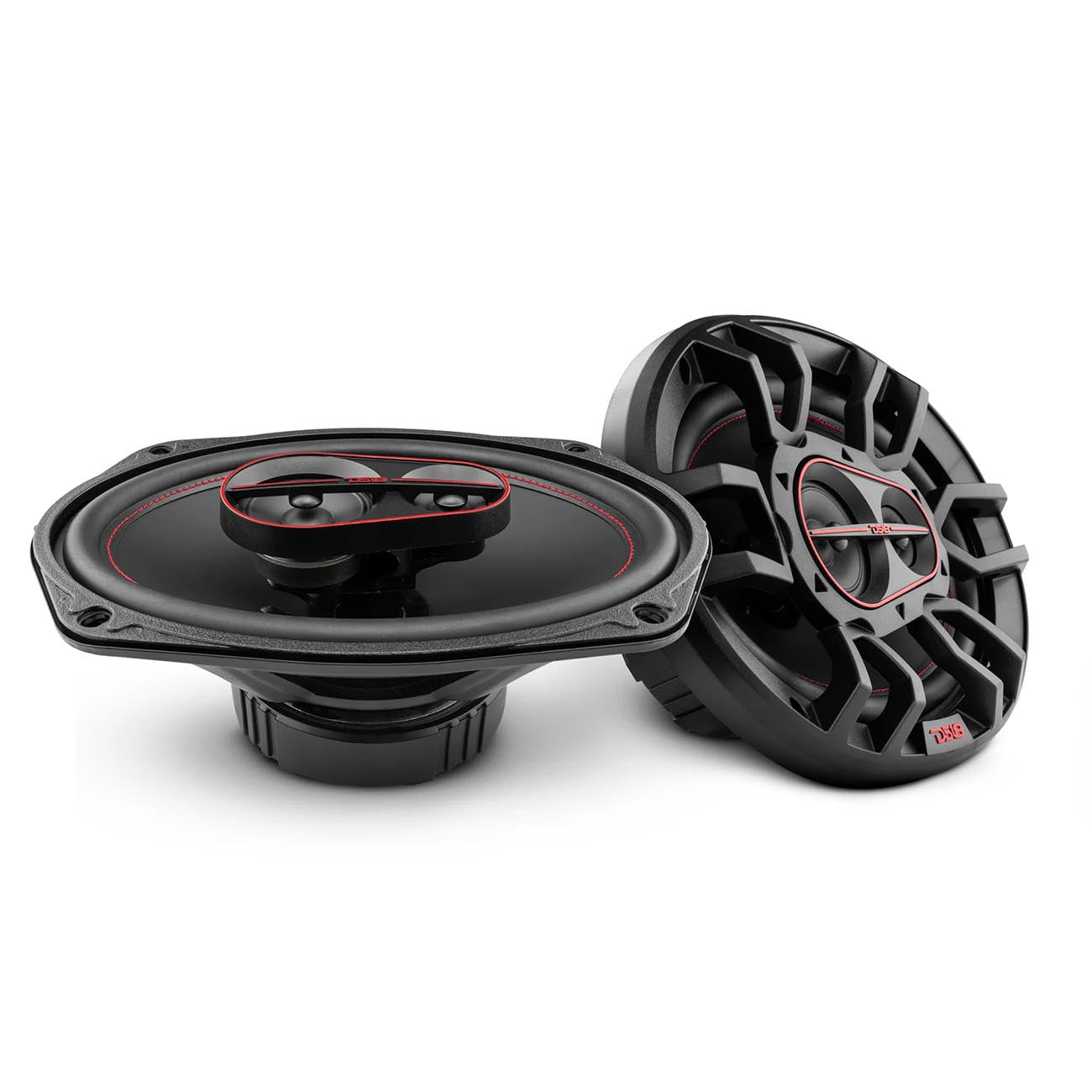

G69XI - DS18 Gen-X 6.9″ 3-Way Speakers

DS18 Gen-X 6.9&quote; 3-Way Speakers (Sold in Pairs)

Impedance: 4 Ohms
RMS Power: 60W
MAX Power: 180W
Sensitivity (1w/1m): 86dB
Frequency Response: 35Hz - 20KHz
Recommended HI Pass Crossover: 50Hz
Grills Included

WOOFER SPECIFICATIONS
Voice Coil Diameter: 1&quote; / 25.5mm
Voice Coil Former Material: ASV
Winding Material: EISV
Cone Material: Paper
Surround Material: Rubber
Basket Material: Steel
Basket Color/Finish: Black Matte
Magnet Material: Barium Ferrite
Magnet Weight: 15.7oz / 445g

(1) TWEETER SPECIFICATIONS
Nominal Diameter: 2.3&quote; / 59mm
Voice Coil Diameter: 0.6&quote; / 17mm
Voice Coil Former Material: PESV
Winding Material: EISVM
Diaphragm Material: Mylar
Magnet Material: Barium Ferrite
Magnet Weight: 34g

(2) TWEETER SPECIFICATIONS
Nominal Diameter: 1.1&quote; / 29mm
Voice Coil Diameter: Peizo
Diaphragm Material: Mylar

Mount Depth: 2.95&quote; / 75mm
