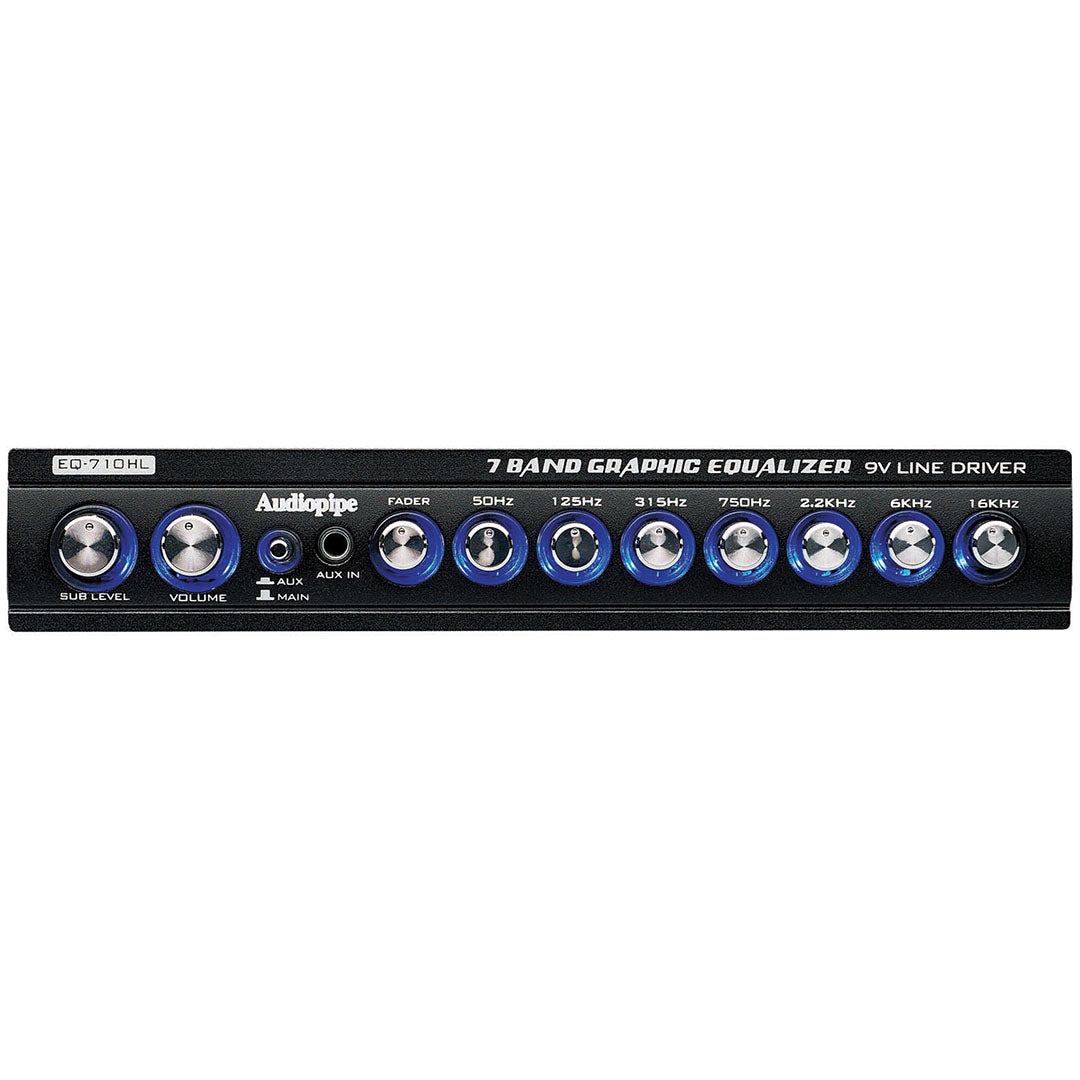

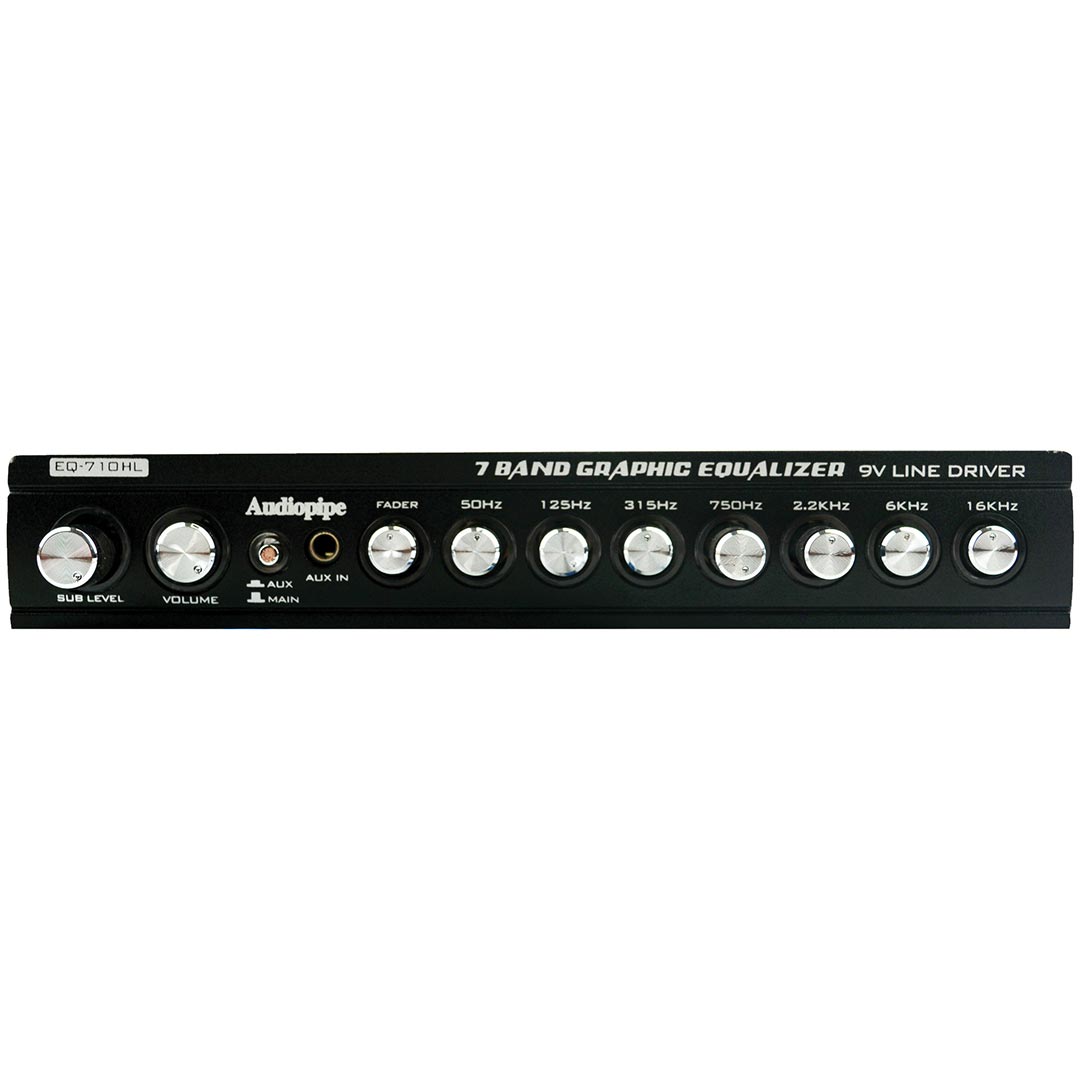

EQ710HL - Audiopipe 7 Band Graphic Equalizer with HI/LO Converter (9V Line Driver)

Audiopipe 7 Band Graphic Equalizer with HI/LO Converter (9V Line Driver)

Nickel plated locking adjustable knobs
Adjustable Subwoofer Frequency: 60Hz/90Hz
Universal half-din chassis for ease of installation
Adjustable gain pre-amplifiers with adjustable input sensitivity
Individual left and right sensitivity controls for auxiliary input
20dB headroom output and level controls
High/Low Level Inputs
Subwoofer output and level controls
Gold-plated RCA input connectors
Fader, Volume & Sub Controls
Main/Auxiliary input selector
3.5mm Front Audio Input
Preamp Outputs: Front/Rear/Sub
Graphic Center Frequencies:
50Hz, 125Hz, 315hz, 750Hz, 2.2kHz, 6kHz, 16kHz
Boost/Cut: 12dB
Sub Woofer Crossover: 60/90 Hz
S/N Ratio: 100dB
Frequency Response: 10Hz-50kHz +/-1dB
Maximum Output Voltage: 9V
THO: 0.005%
Input Sensitivity: 50Mv - 3v
