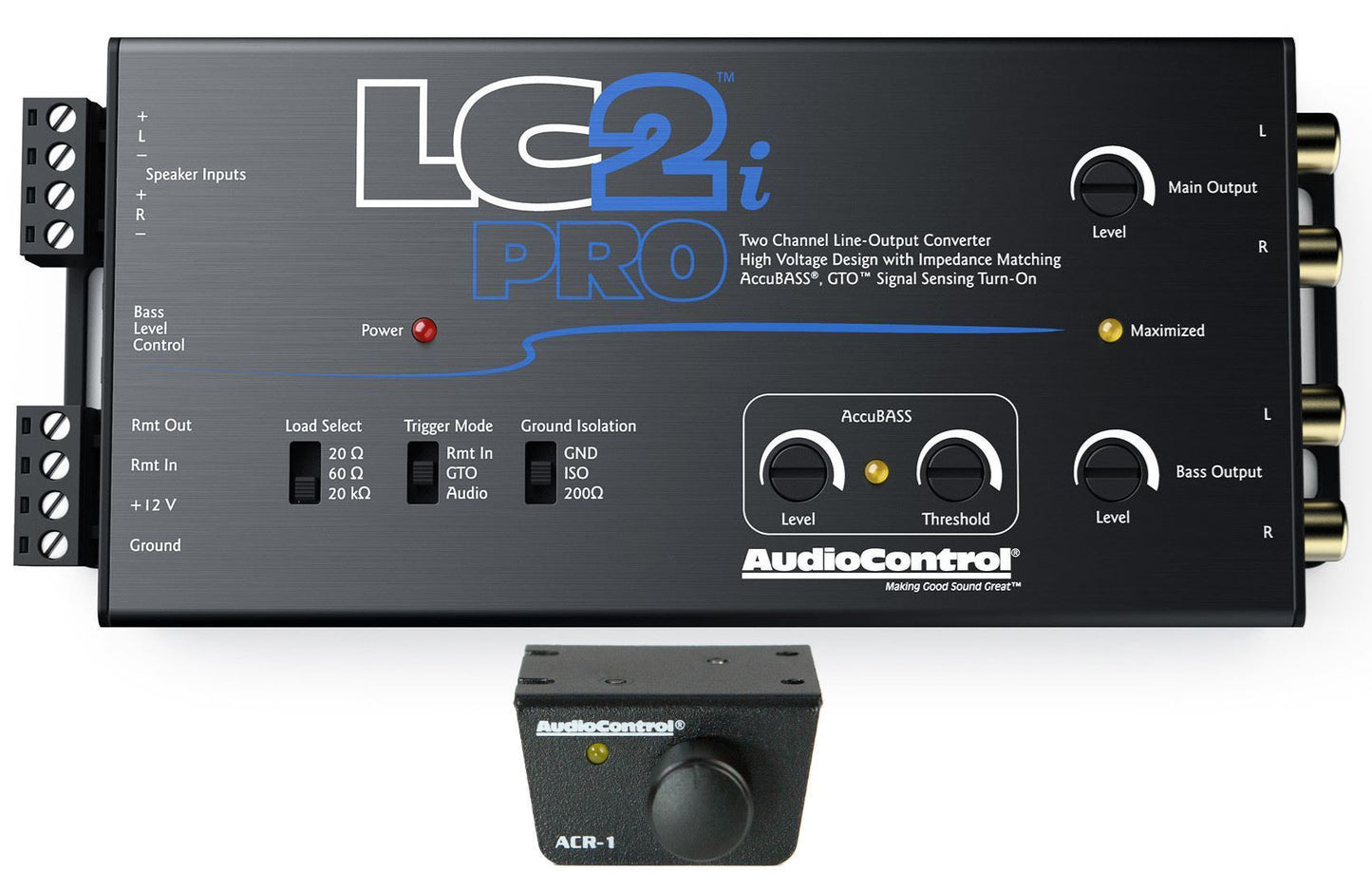

AudioControl ACO-LC2IPRO

LC2IPRO 2 Channel Line Output Converter LOC w/ AccuBass & ACR-1 Included

The LC2i PRO join ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC2i PRO will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. Compensate for factory bass roll-off with AudioContol’s patented AccuBASS and control your sub with the included ACR-1 level control

• Two channels of active speaker level inputs (up to 40V input handling)
• Fixed and variable outputs with discrete level controls
• AccuBASS processing for correction of bass roll-off
• Load Selection Switch
• GTOTM Signal Sensing
• Ground Isolation Switch
• ACR-1 dash remote inluded
• Compact design
• Speaker Level Input: 1 (2 channels)
• Maximum Speaker Level Input: 40 Vrms / 400 W (20k Ω setting)
• Input Impedance (selectable): 20 Ω, 60 Ω, 20k Ω
• Preamp Outputs: 2 (2 channels main, 2 channels bass)
• Maximum Output Level: 9.5Vrms/13V peak
• Output Gain: +/- 12 dB
• Output Impedance: 150 Ω
• Total Harmonic Distortion: 0.01%
• Signal to Noise: >110 dB
• Frequency Response: 20Hz–50 kHz ±1 dB
• Remote In / GTO Signal Sense / Audio Sense
• 12VDC Remote Out (always active when unit is on)
• Current Draw: 200 mA
• Recommended Fuse Rating: 1 A
• Dimensions: 6.9″ L x 3″ D x 1″ H (including speaker connectors)
• Weight: 0.75 lbs. (0.34 kg)
