AudioControl

AudioControl ACO-LC1I

AudioControl ACO-LC1I

SKU:

Regular price $99.99 USD
Regular price Sale price $99.99 USD
Sale Sold out

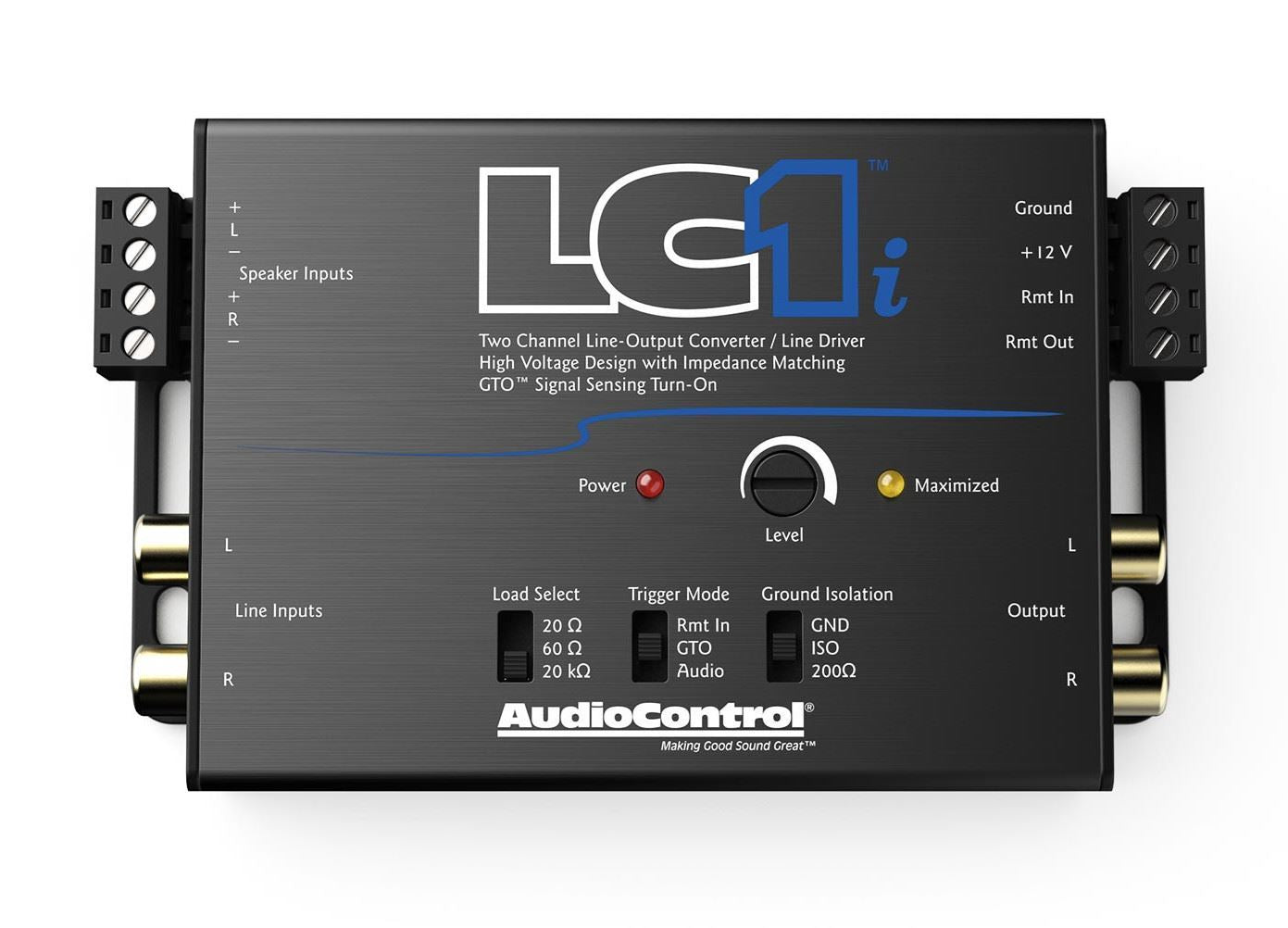

LC1i 2 Channel Line Output Converter LOC

The LC1i joins ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC1 will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO Signal Sense (DC offset), audio sense, or remote 12 volt inputs. For future head unit upgrades, the LC1i is also a line driver and can remain in the system to provide optimal preamp signal

  • Two channels of active speaker level inputs (up to 40V input handling)
  • Two channels of line level inputs
  • Load Selection Switch
  • GTOTM Signal Sensing
  • Ground Isolation Switch
  • Compact design
  • Inputs:
    Speaker Level Input: 1 (2 channels)
    Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
    Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
    Line Level Input: 1 (2 channels)
    Line Level Input Impedance: 7kΩ
  • Outputs
    Preamp Outputs: 1 (2 channels)
    Maximum Output Level: 9.5Vrms/13V peak
    Output Gain: +/- 12 dB
    Output Impedance: 150Ω
  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >110 dB
  • Frequency Response: 20 Hz – 50 kHz ±1 dB
